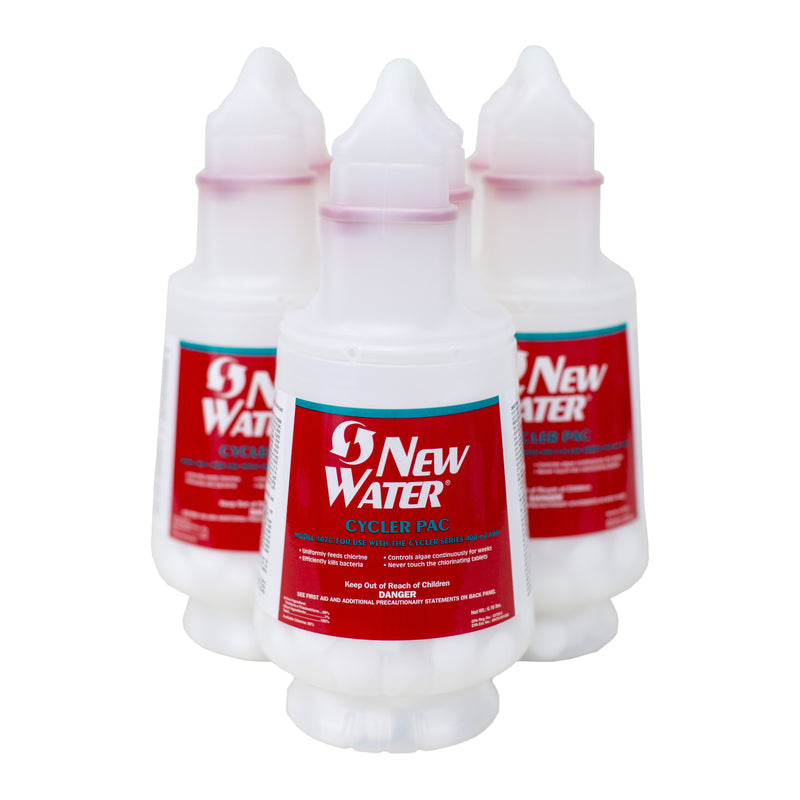

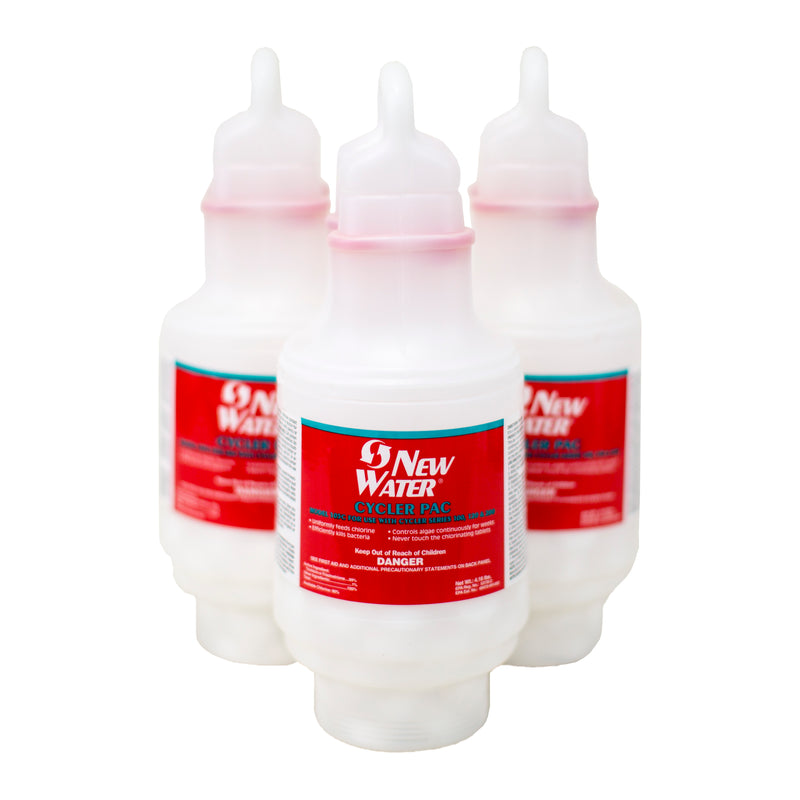

New Water Cycler Pac

Pre Treatment:

1. Adjust pH level to 7.2 -7.8.
2. Bring Free Available Chlorine (FAC) residual to 1-1.5 ppm using a chlorine shock.  Follow Manufacturers Label Directions.
3. Stabilize the pool with cyanuric acid stabilizer.  Follow Manufacturers Label Directions.

To Install Pac:


1. Take New Water Cycler cap off.  Remove pac cut offs.  Hold pac so the open end faces down.  Insert into New Water Cycler.  The end of the pac must align with the key located inside the New Water Cycler at the bottom.  Do not force.  Replace New Water Cycler cap and set the control dial to appropriate setting.  For a guideline, using a 13,500 gallon pool with a pump running 8 hours per day, begin with the control dial set on #3.  For an 18,000 gallon pool, start at setting #4.  To achieve the proper FAC, turn the control dial to the next higher setting to increase the FAC and the next higher setting to increase the FAC and turn it to the next lower setting to decrease the FAC.  Operate the pool for 1 day.  Check the FAC residual and increase/decrease one setting per day until you achieve 1-1.5 ppm.  Pool should not be entered until the chlorine residual is 1-1.5 ppm.
2. Once you have determined the proper setting for your pool, you should not have to re-adjust the setting under normal conditions.  Should conditions change (i.e. weather, rain, pool use, bather load, etc.) the control dial can be easily adjusted to increase or decrease the chlorine feed.
3. Super-chlorinate if needed.  Do not add shock treatment to the skimmer.  Turn control dial to minimum or setting #0 before super-chlorinating.  Once desired FAC has been obtained, return the control dial to the normal operating setting.
4. Periodically check the pac and replace with a new one when empty.  Do not attempt to open or refill this pac.  Do not reuse.

Trichloro-s-Triazinetrione: 99%, Other Ingredients: 1%, Available Chlorine: 90%
